| Gross weight | 0.069 Kilogram |
| Net weight | 0.068 Kilogram |
| Volume | 0.547 Liter |
| EAN | 5702428274968 |
| Gross weight | 0.069 Kilogram |
| Net weight | 0.068 Kilogram |
| Volume | 0.547 Liter |
| EAN | 5702428274968 |
| + supply | Pin 1 |
| - common | Pin 3 |
| Accuracy, max. [±FS%] | 3 % |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contain batteries | No |
| Electrical conn. Male/Female | Female |
| Electrical connection | Molex |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Medium temperature range [°C] [max] | 70 °C |
| Medium temperature range [°C] [min] | -20 °C |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 55 bar |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 14 mm |
| Pressure connection notes | With Schrader Depressor |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | ASME B1.1 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [max] | 50 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |

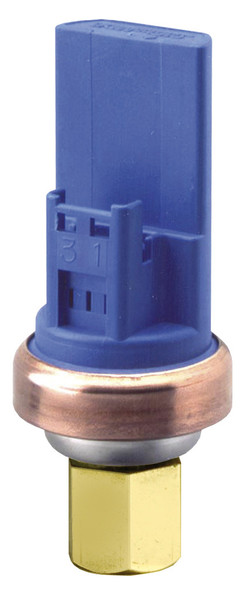

| Product Name Description | Pressure transmitter |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants |
R134a R404A R407C R407H R410A R449B R450A R513A |
| SCIP dossier no. | 336c08aa-a947-4659-835b-4071ea5542ec |
| SCIP dossier product name | XSK Series |
| Specification key | XSK-AC50I-U188 |
| Supply voltage [V] DC [max] | 28 V |
| Supply voltage [V] DC [min] | 10.5 V |
| Type | XSK |
| UK RoHS compliance | Out of scope |
| + supply | Pin 1 |
| - common | Pin 3 |
| Accuracy, max. [±FS%] | 3 % |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contain batteries | No |
| Electrical conn. Male/Female | Female |
| Electrical connection | Molex |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Medium temperature range [°C] [max] | 70 °C |
| Medium temperature range [°C] [min] | -20 °C |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 55 bar |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 14 mm |
| Pressure connection notes | With Schrader Depressor |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | ASME B1.1 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [max] | 50 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants |
R134a R404A R407C R407H R410A R449B R450A R513A |
| SCIP dossier no. | 336c08aa-a947-4659-835b-4071ea5542ec |
| SCIP dossier product name | XSK Series |
| Specification key | XSK-AC50I-U188 |
| Supply voltage [V] DC [max] | 28 V |
| Supply voltage [V] DC [min] | 10.5 V |
| Type | XSK |
| UK RoHS compliance | Out of scope |
