| Gross weight | 0.66 Kilogram |
| Net weight | 0.54 Kilogram |
| Volume | 1.708 Liter |
| EAN | 5702428275798 |
| Gross weight | 0.66 Kilogram |
| Net weight | 0.54 Kilogram |
| Volume | 1.708 Liter |
| EAN | 5702428275798 |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval |
CE UKCA |
| Burst pressure [bar] | 131 bar |
| Burst pressure [psig] | 1900 psig |
| Capillary tube length [in] | 35.4 in |
| Capillary tube length [mm] | 900 mm |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contain batteries | No |
| Enclosure rating IP | IP54 |
| EU RoHS compliance | Out of scope |
| Factory setting [bar] | 19 bar |
| Factory setting [psig] | 276 psig |
| Frequency [Hz] | 50/60 Hz |
| Housing | Closed |
| Max. current output/phase [A] | 6 A |
| Max. Working Pressure [bar] | 47 bar |
| Max. Working Pressure [psig] | 681 psig |
| Min speed setting [%] |
35%@60Hz 45%@50Hz |
| Number of Phases | 1 |
| Number of terminals [pcs] | 4 pc |
| P band max. [bar] | 4 bar |
| P band max. [psi] | 58 psi |
| Packing format | Multi pack |
| Pressure connection notes | with Schrader |
| Pressure inlet conn. size [in] | 1/4 |
| Pressure inlet conn. std. | DIN 8906 |
| Pressure inlet conn. type | Flare |
| Pressure inlet Internal/Extern | Internal |
| Product accessories | No |
| Product group | Electronic controllers |

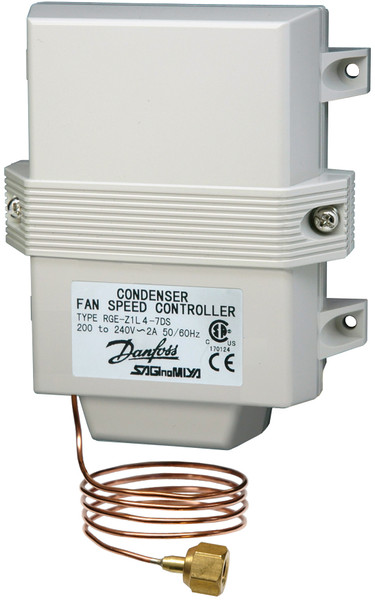

| Product Name Description | Fan speed controller |
| Quantity per packing format | 16 pc |
| REACH Candidate List substances | No |
| Refrigerants |
R134a R22 R404A R407C R407H R449B R450A R513A |
| Regulation range [bar] Pe [max] | 28 bar |
| Regulation range [bar] Pe [min] | 8 bar |
| Regulation range [MPa] Pe [max] | 2.8 MPa |
| Regulation range [MPa] Pe [min] | 0.8 MPa |
| Regulation range [psig] Pe [max] | 406 psig |
| Regulation range [psig] Pe [min] | 116 psig |
| Serviceable | No |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 200 V |
| Type | RGE |
| Type designation | RGE-Z1P4-7DS |
| UK RoHS compliance | Out of scope |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval |
CE UKCA |
| Burst pressure [bar] | 131 bar |
| Burst pressure [psig] | 1900 psig |
| Capillary tube length [in] | 35.4 in |
| Capillary tube length [mm] | 900 mm |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contain batteries | No |
| Enclosure rating IP | IP54 |
| EU RoHS compliance | Out of scope |
| Factory setting [bar] | 19 bar |
| Factory setting [psig] | 276 psig |
| Frequency [Hz] | 50/60 Hz |
| Housing | Closed |
| Max. current output/phase [A] | 6 A |
| Max. Working Pressure [bar] | 47 bar |
| Max. Working Pressure [psig] | 681 psig |
| Min speed setting [%] |
35%@60Hz 45%@50Hz |
| Number of Phases | 1 |
| Number of terminals [pcs] | 4 pc |
| P band max. [bar] | 4 bar |
| P band max. [psi] | 58 psi |
| Packing format | Multi pack |
| Pressure connection notes | with Schrader |
| Pressure inlet conn. size [in] | 1/4 |
| Pressure inlet conn. std. | DIN 8906 |
| Pressure inlet conn. type | Flare |
| Pressure inlet Internal/Extern | Internal |
| Product accessories | No |
| Product group | Electronic controllers |
| Product Name Description | Fan speed controller |
| Quantity per packing format | 16 pc |
| REACH Candidate List substances | No |
| Refrigerants |
R134a R22 R404A R407C R407H R449B R450A R513A |
| Regulation range [bar] Pe [max] | 28 bar |
| Regulation range [bar] Pe [min] | 8 bar |
| Regulation range [MPa] Pe [max] | 2.8 MPa |
| Regulation range [MPa] Pe [min] | 0.8 MPa |
| Regulation range [psig] Pe [max] | 406 psig |
| Regulation range [psig] Pe [min] | 116 psig |
| Serviceable | No |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 200 V |
| Type | RGE |
| Type designation | RGE-Z1P4-7DS |
| UK RoHS compliance | Out of scope |
