| Gross weight | 0.238 Kilogram |
| Net weight | 0.005 Kilogram |
| Volume | 1.072 Liter |
| EAN | 5702428567091 |
| Gross weight | 0.238 Kilogram |
| Net weight | 0.005 Kilogram |
| Volume | 1.072 Liter |
| EAN | 5702428567091 |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 130 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval |
CE EAC EMCD LVD RoHS RoHS China TYSK |
| Capillary tube length [mm] | 2000 mm |
| Capillary tube material | Copper |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating |
AC15=1 A, 250 V AC1=16 A, 250 V AC3=7,5 A, 250 V |
| Contain batteries | No |
| Differential (FS) [K] | 3 K |
| Electrical connection | Clamps Terminal screws |
| Enclosure rating IP | IP20 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Max. sensor temperature [°C] | 80 °C |
| Max. sensor temperature [°F] | 176 °F |
| Mounting method | Wall |
| Other RoHS documentation | Saudi Arabia RoHS |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product group | Switches and thermostats |

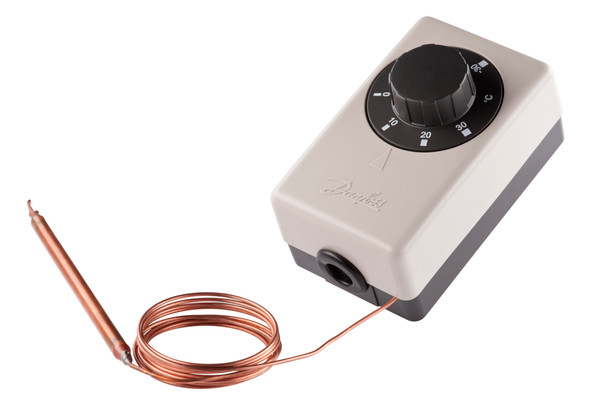

| Product Name Description | Thermostat |
| Quantity per packing format | 24 pc |
| Reset function | Auto |
| Sensor size (Ø x L) [in] | 15/64 x 4 44/64 in |
| Sensor size (Ø x L) [mm] | 6 x 119 mm |
| Serviceable | No |
| Temperature range [°C] [max] | 30 °C |
| Temperature range [°C] [min] | -30 °C |
| Temperature range [°F] [max] | 85 °F |
| Temperature range [°F] [min] | -22 °F |
| Type | UT 72 |
| UK RoHS compliance | Yes |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 130 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval |
CE EAC EMCD LVD RoHS RoHS China TYSK |
| Capillary tube length [mm] | 2000 mm |
| Capillary tube material | Copper |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating |
AC15=1 A, 250 V AC1=16 A, 250 V AC3=7,5 A, 250 V |
| Contain batteries | No |
| Differential (FS) [K] | 3 K |
| Electrical connection | Clamps Terminal screws |
| Enclosure rating IP | IP20 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Max. sensor temperature [°C] | 80 °C |
| Max. sensor temperature [°F] | 176 °F |
| Mounting method | Wall |
| Other RoHS documentation | Saudi Arabia RoHS |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product group | Switches and thermostats |
| Product Name Description | Thermostat |
| Quantity per packing format | 24 pc |
| Reset function | Auto |
| Sensor size (Ø x L) [in] | 15/64 x 4 44/64 in |
| Sensor size (Ø x L) [mm] | 6 x 119 mm |
| Serviceable | No |
| Temperature range [°C] [max] | 30 °C |
| Temperature range [°C] [min] | -30 °C |
| Temperature range [°F] [max] | 85 °F |
| Temperature range [°F] [min] | -22 °F |
| Type | UT 72 |
| UK RoHS compliance | Yes |
