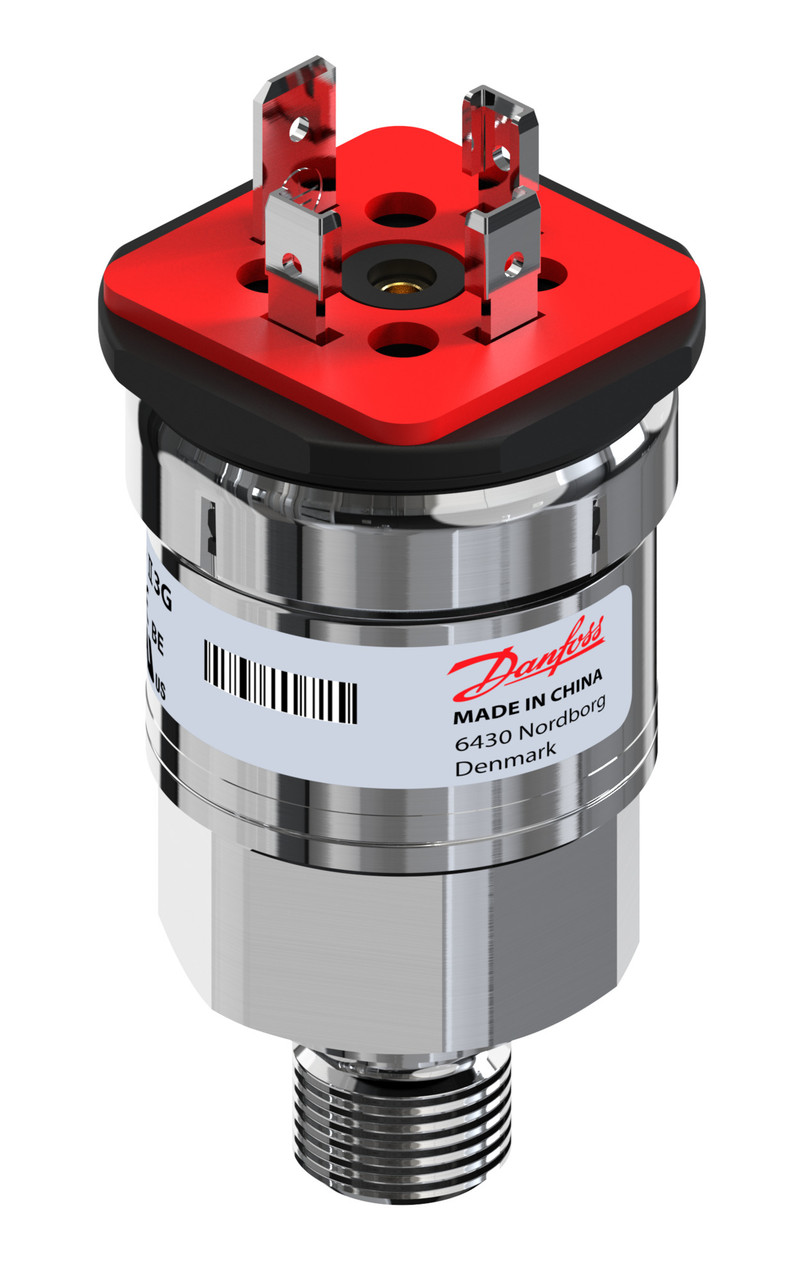

Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Angular connector, Pressure connection type: M, Pressure connection size: 16 x 1.5, Specification key: AKS 3050-N231-A0CD21-0
| Gross weight |
0.142 Kilogram |
| Net weight |
0.126 Kilogram |
| Volume |
0.27 Liter |
| EAN |
5702428915403 |
| Gross weight |
0.142 Kilogram |
| Net weight |
0.126 Kilogram |
| Volume |
0.27 Liter |
| EAN |
5702428915403 |
| + supply |
Pin 1 |
| - common |
Pin 2 |
| Accuracy, max. [±FS%] |
2 % |
| Accuracy, typical [±FS%] |
1 % |
| Adj. zero point and span |
No |
| Ambient temperature range [°C] [max] |
85 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| Ambient temperature range [°F] [max] |
185 °F |
| Ambient temperature range [°F] [min] |
-40 °F |
| Approval |
ATEX
cUR |
| Approval comments |
ATEX Ex ec IIA T4 Gc |
| Approval standard |
E227388
E31024 |
| CE evaluated |
Yes |
| China RoHS compliance |
Out of scope |
| Compensated temp. range [°C] [max] |
80 °C |
| Compensated temp. range [°C] [min] |
0 °C |
| Compensated temp. range [°F] [max] |
176 °F |
| Compensated temp. range [°F] [min] |
32 °F |
| Contain batteries |
No |
| EEE category |
5 small equipment (any external dimension 50 cm) |
| Electrical conn. Male/Female |
Male |
| Electrical connection |
Angular connector |
| Electrical connection size |
4 pin |
| Electrical connection standard |
EN 175301-803-A |
| Enclosure rating IP |
IP65 |
| EU RoHS compliance |
Out of scope |
| Flush diaphragm |
No |
| High Clipping Level |
22.4 |
| In scope of WEEE |
Yes |
| International Article Number |
5702428915403 |
| Intrinsically safe |
No |
| Low Clipping level |
3.6 |
| Medium temperature range [°C] [max] |
85 °C |
| Medium temperature range [°C] [min] |
-40 °C |
| Medium temperature range [°F] [max] |
185 °F |
| Medium temperature range [°F] [min] |
-40 °F |
| Non-linearity BFSL [±FS%] |
0.5 % |
| Output signal |
Current |
| Output signal [mA] [max] |
20 mA |
| Output signal [mA] [min] |
4 mA |
| Overload pressure max. [bar] |
33 bar |
| Packing format |
Multi pack |
| Pressure connection size |
16 x 1.5 |
| Pressure connection standard |
ISO 261 |
| Pressure connection type |
M |
| Pressure Male/Female |
Male |
| Pressure range [bar] [max] |
25 bar |
| Pressure range [bar] [min] |
-1 bar |
| Pressure range [psi] [max] |
362.5 psi |
| Pressure range [psi] [min] |
-14.5 psi |
| Pressure reference |
Sealed gauge |
| Product group |
Sensors |
| Product Name Description |
Pressure transmitter |
| Pulse-snubber |
Yes |
| Quantity per packing format |
20 pc |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Response time max. [ms] |
4 ms |
| SCIP dossier no. |
442fa760-b631-4ddb-a979-55b604269353 |
| SCIP dossier product name |
Sensor AKS 3000 |
| Specification key |
AKS 3050-N231-A0CD21-0 |
| Supply voltage [V] DC [max] |
32 V |
| Supply voltage [V] DC [min] |
9 V |
| Type |
AKS 3050 |
| UK RoHS compliance |
Out of scope |
| + supply |
Pin 1 |
| - common |
Pin 2 |
| Accuracy, max. [±FS%] |
2 % |
| Accuracy, typical [±FS%] |
1 % |
| Adj. zero point and span |
No |
| Ambient temperature range [°C] [max] |
85 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| Ambient temperature range [°F] [max] |
185 °F |
| Ambient temperature range [°F] [min] |
-40 °F |
| Approval |
ATEX
cUR |
| Approval comments |
ATEX Ex ec IIA T4 Gc |
| Approval standard |
E227388
E31024 |
| CE evaluated |
Yes |
| China RoHS compliance |
Out of scope |
| Compensated temp. range [°C] [max] |
80 °C |
| Compensated temp. range [°C] [min] |
0 °C |
| Compensated temp. range [°F] [max] |
176 °F |
| Compensated temp. range [°F] [min] |
32 °F |
| Contain batteries |
No |
| EEE category |
5 small equipment (any external dimension 50 cm) |
| Electrical conn. Male/Female |
Male |
| Electrical connection |
Angular connector |
| Electrical connection size |
4 pin |
| Electrical connection standard |
EN 175301-803-A |
| Enclosure rating IP |
IP65 |
| EU RoHS compliance |
Out of scope |
| Flush diaphragm |
No |
| High Clipping Level |
22.4 |
| In scope of WEEE |
Yes |
| International Article Number |
5702428915403 |
| Intrinsically safe |
No |
| Low Clipping level |
3.6 |
| Medium temperature range [°C] [max] |
85 °C |
| Medium temperature range [°C] [min] |
-40 °C |
| Medium temperature range [°F] [max] |
185 °F |
| Medium temperature range [°F] [min] |
-40 °F |
| Non-linearity BFSL [±FS%] |
0.5 % |
| Output signal |
Current |
| Output signal [mA] [max] |
20 mA |
| Output signal [mA] [min] |
4 mA |
| Overload pressure max. [bar] |
33 bar |
| Packing format |
Multi pack |
| Pressure connection size |
16 x 1.5 |
| Pressure connection standard |
ISO 261 |
| Pressure connection type |
M |
| Pressure Male/Female |
Male |
| Pressure range [bar] [max] |
25 bar |
| Pressure range [bar] [min] |
-1 bar |
| Pressure range [psi] [max] |
362.5 psi |
| Pressure range [psi] [min] |
-14.5 psi |
| Pressure reference |
Sealed gauge |
| Product group |
Sensors |
| Product Name Description |
Pressure transmitter |
| Pulse-snubber |
Yes |
| Quantity per packing format |
20 pc |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Response time max. [ms] |
4 ms |
| SCIP dossier no. |
442fa760-b631-4ddb-a979-55b604269353 |
| SCIP dossier product name |
Sensor AKS 3000 |
| Specification key |
AKS 3050-N231-A0CD21-0 |
| Supply voltage [V] DC [max] |
32 V |
| Supply voltage [V] DC [min] |
9 V |
| Type |
AKS 3050 |
| UK RoHS compliance |
Out of scope |
