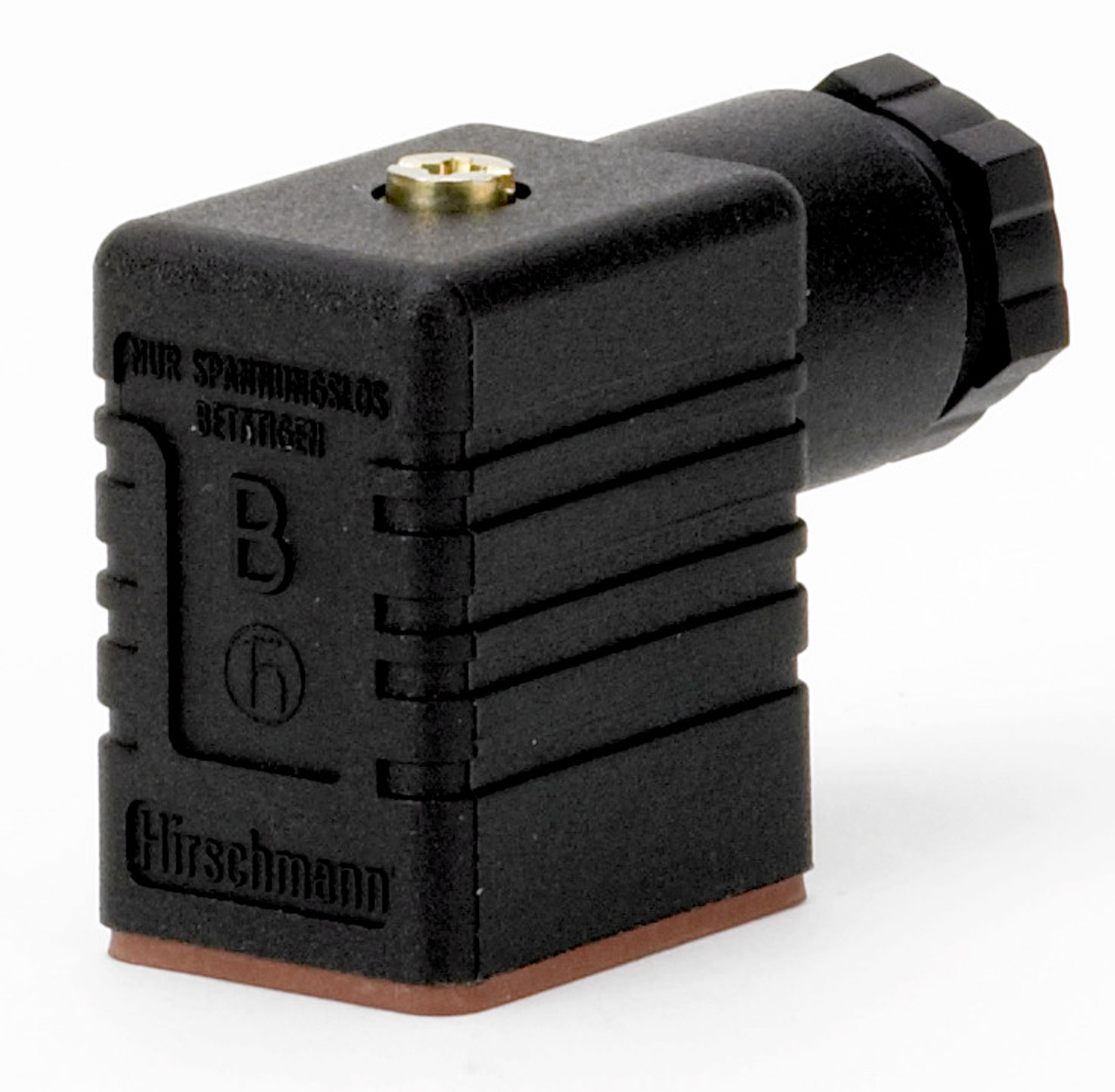

Product Type: Spare part, Used for product: 9-22 Coil AB/AC, Type designation: Cable plug, Cable plug
| Gross weight |
0.026 Kilogram |
| Net weight |
0.026 Kilogram |
| Volume |
0.032 Liter |
| EAN |
5702422119463 |
| Gross weight |
0.026 Kilogram |
| Net weight |
0.026 Kilogram |
| Volume |
0.032 Liter |
| EAN |
5702422119463 |
| Ambient temperature range [°C] [max] |
80 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| Ambient temperature range [°F] [max] |
176 °F |
| Ambient temperature range [°F] [min] |
-40 °F |
| Approval |
CE
UKCA |
| Body material |
PA |
| Body type |
Opaque |
| Cable diameter [in] [max] |
0.28 in |
| Cable diameter [in] [min] |
0.18 in |
| Cable diameter [mm] [max] |
7 mm |
| Cable diameter [mm] [min] |
4.5 mm |
| Cable holder material |
PA |
| CE evaluated |
Yes |
| China RoHS compliance |
Out of scope |
| Conductor size, max. [mm2] |
1.5 mm² |
| Contact material |
CuZn (Sn plated) |
| Contact resistance max. [mOhm] |
4 mOhm |
| Contacts |
2 + PE |
| Contain batteries |
No |
| Electrical connection form |
Industrial form |
| Electrical connection size |
Pg 9 |
| Enclosure rating IP |
IP65 |
| EU RoHS compliance |
Out of scope |
| Gasket material |
NBR |
| Gasket type |
Flat |
| Operating current max. [A] |
16 A |
| Packing format |
Multi pack |
| Plug type |
GM 209 J |
| Product group |
Solenoid coil accessories |
| Product Name Description |
Cable plug |
| Quantity per packing format |
100 pc |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| SCIP dossier no. |
33a08c9f-9082-4cc7-8c13-e30d496fdac8 |
| Supply voltage [V] AC |
250 V |
| Supply voltage [V] DC |
250 V |
| Supply voltage [V] DC |
250 V |
| Terminal block material |
PA |
| Type |
Spare part |
| Type designation |
Cable plug |
| UK RoHS compliance |
Out of scope |
| Used for product |
9-22 Coil AB/AC |
| Ambient temperature range [°C] [max] |
80 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| Ambient temperature range [°F] [max] |
176 °F |
| Ambient temperature range [°F] [min] |
-40 °F |
| Approval |
CE
UKCA |
| Body material |
PA |
| Body type |
Opaque |
| Cable diameter [in] [max] |
0.28 in |
| Cable diameter [in] [min] |
0.18 in |
| Cable diameter [mm] [max] |
7 mm |
| Cable diameter [mm] [min] |
4.5 mm |
| Cable holder material |
PA |
| CE evaluated |
Yes |
| China RoHS compliance |
Out of scope |
| Conductor size, max. [mm2] |
1.5 mm² |
| Contact material |
CuZn (Sn plated) |
| Contact resistance max. [mOhm] |
4 mOhm |
| Contacts |
2 + PE |
| Contain batteries |
No |
| Electrical connection form |
Industrial form |
| Electrical connection size |
Pg 9 |
| Enclosure rating IP |
IP65 |
| EU RoHS compliance |
Out of scope |
| Gasket material |
NBR |
| Gasket type |
Flat |
| Operating current max. [A] |
16 A |
| Packing format |
Multi pack |
| Plug type |
GM 209 J |
| Product group |
Solenoid coil accessories |
| Product Name Description |
Cable plug |
| Quantity per packing format |
100 pc |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| SCIP dossier no. |
33a08c9f-9082-4cc7-8c13-e30d496fdac8 |
| Supply voltage [V] AC |
250 V |
| Supply voltage [V] DC |
250 V |
| Supply voltage [V] DC |
250 V |
| Terminal block material |
PA |
| Type |
Spare part |
| Type designation |
Cable plug |
| UK RoHS compliance |
Out of scope |
| Used for product |
9-22 Coil AB/AC |
