| Gross weight | 2.565 Kilogram |
| Net weight | 2.419 Kilogram |
| Volume | 3.107 Liter |
| EAN | 5702428160346 |
| Gross weight | 2.565 Kilogram |
| Net weight | 2.419 Kilogram |
| Volume | 3.107 Liter |
| EAN | 5702428160346 |
| Acid capacity [g] | 34.57 g |
| Acid capacity [oz] | 1.219 oz |
| Activated alum/Molec sieve [%] | 70% / 30% |
| Activated alumina [%] | 70 % |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| China RoHS compliance | Yes exceed limitations |
| Connection material | Copper |
| Connection notes | Schraeder Inlet / Outlet |
| Contain batteries | No |
| Core | Solid core |
| Core Size code | 60 cu.in. |
| Core type | Solid core |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) |
| Filter application | Compressor Burnout |
| Flow capacity [kW] |
R134a: 12.0 R404A: 17.0 R407C: 20.0 R410A: 20.0 R507: 17.0 |
| Flow capacity [TR] |
R134a: 3.4 R404A: 4.8 R407C: 5.7 R410A: 5.7 R507: 4.8 |
| Flow direction indicator | Label printed 1-way arrow |
| FlowCap Cond (ARI 730-05)[IMP] |
Delta p=3PSI tevap=40°F |
| FlowCap Cond (ARI 730-05)[SI] |
Delta p=0.21bar tevap=4°C |
| Fluid Group | 2 |
| Inlet 1 connection size [in] | 7/8 in |
| Inlet connection type | Solder, ODF |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [psig] | 508 psig |
| Molecular sieve [%] | 30 % |
| Net volume [foz US] | 27.96 Fluid Ounce US |
| Net volume [l] | 0.827 L |
| Oil free refrigerants |
R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 7/8 in |
| Outlet connection type | Solder, ODF |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Product accessories | No |

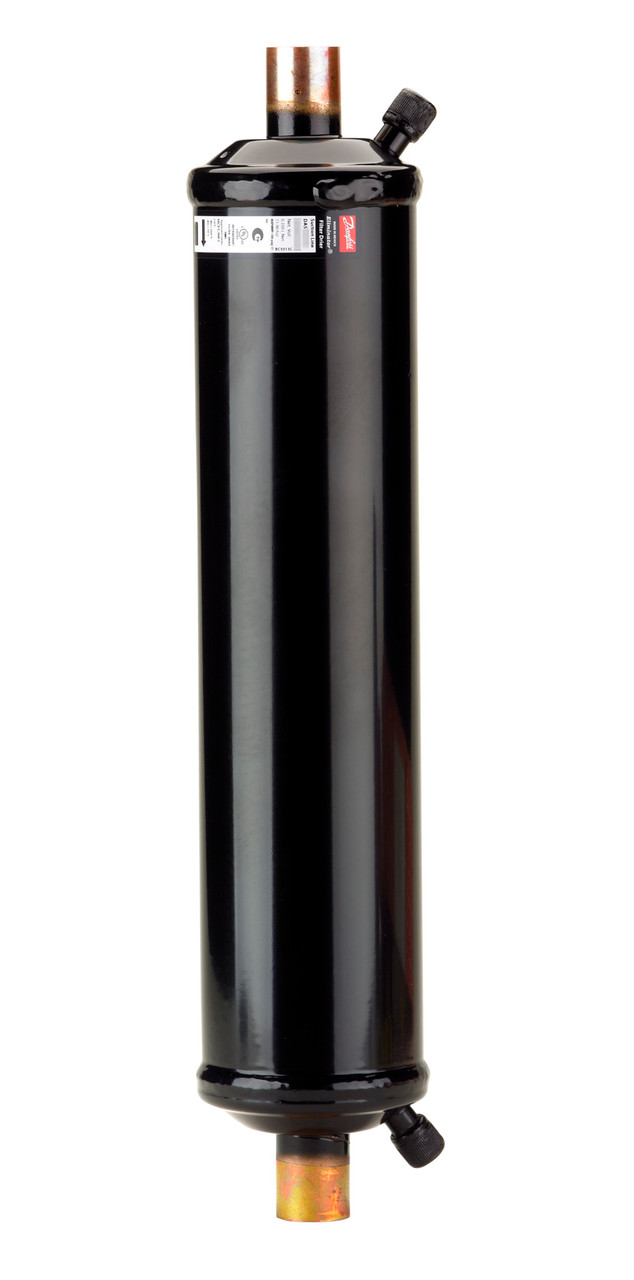

| Product description | Suction line filter drier |
| Product group | Filter driers |
| Product Name Description | Hermetic burn-out filter drier |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants |
R1234yf R1234ze(E) R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 |
| SCIP dossier no. | a9d5b0f2-6647-48a9-a7b2-4f578fb6931e |
| SCIP dossier product name | Filter Driers |
| Serviceable | No |
| Shell volume [foz US] | 45.44 Fluid Ounce US |
| Shell volume [l] | 1.34 L |
| Solid core surface [cm2] | 680 cm² |
| Solid core surface [in2] | 105.4 in² |
| Solid core volume [cm3] | 517 cm³ |
| Solid core volume [in3] | 31.54 in³ |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | DAS |
| Type designation | DAS 607SVV |
| UK RoHS compliance | Out of scope |
| UL approval file name | SA6398 |
| UL approved refrigerants |
R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
| UL evaluated | Yes |
| Acid capacity [g] | 34.57 g |
| Acid capacity [oz] | 1.219 oz |
| Activated alum/Molec sieve [%] | 70% / 30% |
| Activated alumina [%] | 70 % |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| China RoHS compliance | Yes exceed limitations |
| Connection material | Copper |
| Connection notes | Schraeder Inlet / Outlet |
| Contain batteries | No |
| Core | Solid core |
| Core Size code | 60 cu.in. |
| Core type | Solid core |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) |
| Filter application | Compressor Burnout |
| Flow capacity [kW] |
R134a: 12.0 R404A: 17.0 R407C: 20.0 R410A: 20.0 R507: 17.0 |
| Flow capacity [TR] |
R134a: 3.4 R404A: 4.8 R407C: 5.7 R410A: 5.7 R507: 4.8 |
| Flow direction indicator | Label printed 1-way arrow |
| FlowCap Cond (ARI 730-05)[IMP] |
Delta p=3PSI tevap=40°F |
| FlowCap Cond (ARI 730-05)[SI] |
Delta p=0.21bar tevap=4°C |
| Fluid Group | 2 |
| Inlet 1 connection size [in] | 7/8 in |
| Inlet connection type | Solder, ODF |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [psig] | 508 psig |
| Molecular sieve [%] | 30 % |
| Net volume [foz US] | 27.96 Fluid Ounce US |
| Net volume [l] | 0.827 L |
| Oil free refrigerants |
R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 7/8 in |
| Outlet connection type | Solder, ODF |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Product accessories | No |
| Product description | Suction line filter drier |
| Product group | Filter driers |
| Product Name Description | Hermetic burn-out filter drier |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants |
R1234yf R1234ze(E) R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 |
| SCIP dossier no. | a9d5b0f2-6647-48a9-a7b2-4f578fb6931e |
| SCIP dossier product name | Filter Driers |
| Serviceable | No |
| Shell volume [foz US] | 45.44 Fluid Ounce US |
| Shell volume [l] | 1.34 L |
| Solid core surface [cm2] | 680 cm² |
| Solid core surface [in2] | 105.4 in² |
| Solid core volume [cm3] | 517 cm³ |
| Solid core volume [in3] | 31.54 in³ |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | DAS |
| Type designation | DAS 607SVV |
| UK RoHS compliance | Out of scope |
| UL approval file name | SA6398 |
| UL approved refrigerants |
R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
| UL evaluated | Yes |
