| Gross weight | 1.208 Kilogram |
| Net weight | 1.064 Kilogram |
| Volume | 2.685 Liter |
| EAN | 5702423245253 |
| Gross weight | 1.208 Kilogram |
| Net weight | 1.064 Kilogram |
| Volume | 2.685 Liter |
| EAN | 5702423245253 |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval |
ATEX - Cat. 2 - Zone 1 CCC CE EAC LLC CDC EURO-TYSK PZH RMRS RoHS RoHS China TYSK |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT gold |
| Contact rating |
Ci=0.5 nF Ii=0.5 A Li=0.2 uH Pi=1 W Ui=29 V |
| Contain batteries | No |
| Differential [bar] [max] | 0.16 bar |
| Differential [bar] [min] | 0.07 bar |
| Differential [psi] [max] | 2.3 psi |
| Differential [psi] [min] | 1 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties |
Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties |
Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Out of scope |
| EX Sales text |
-20C II 2G Ex ia IIC T6...T1 Gb |
| Max. test pressure [bar] Pe | 8 bar |
| Max. test pressure [psig] | 116 psig |
| Max. Working Pressure [bar] | 7 bar |
| Max. Working Pressure [psig] | 100 psig |
| Packing format | Multi pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |

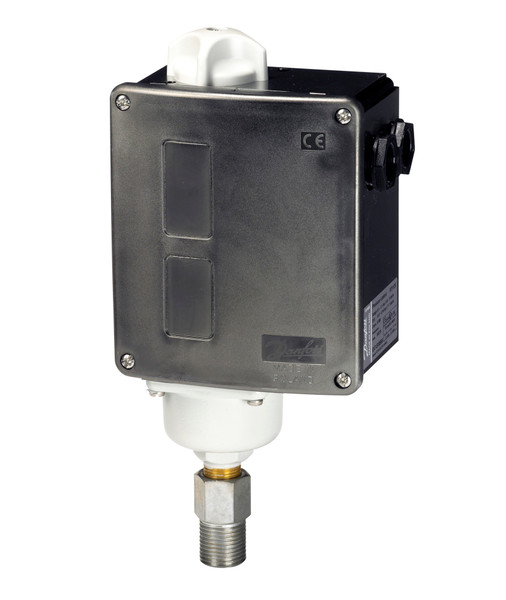

| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 15 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 1.1 bar |
| Regulation range [bar] Pe [min] | 0.1 bar |
| Regulation range [psig] Pe [max] | 16 psig |
| Regulation range [psig] Pe [min] | 1.5 psig |
| Reset function | Auto |
| SCIP dossier no. | 54f3e4b2-77e8-4825-a1c1-c3d5ba584171 |
| Serviceable | Contact systems |
| Type | RT112E |
| UK RoHS compliance | Out of scope |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval |
ATEX - Cat. 2 - Zone 1 CCC CE EAC LLC CDC EURO-TYSK PZH RMRS RoHS RoHS China TYSK |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT gold |
| Contact rating |
Ci=0.5 nF Ii=0.5 A Li=0.2 uH Pi=1 W Ui=29 V |
| Contain batteries | No |
| Differential [bar] [max] | 0.16 bar |
| Differential [bar] [min] | 0.07 bar |
| Differential [psi] [max] | 2.3 psi |
| Differential [psi] [min] | 1 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties |
Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
| EN 60947 wiring properties |
Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Out of scope |
| EX Sales text |
-20C II 2G Ex ia IIC T6...T1 Gb |
| Max. test pressure [bar] Pe | 8 bar |
| Max. test pressure [psig] | 116 psig |
| Max. Working Pressure [bar] | 7 bar |
| Max. Working Pressure [psig] | 100 psig |
| Packing format | Multi pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 15 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 1.1 bar |
| Regulation range [bar] Pe [min] | 0.1 bar |
| Regulation range [psig] Pe [max] | 16 psig |
| Regulation range [psig] Pe [min] | 1.5 psig |
| Reset function | Auto |
| SCIP dossier no. | 54f3e4b2-77e8-4825-a1c1-c3d5ba584171 |
| Serviceable | Contact systems |
| Type | RT112E |
| UK RoHS compliance | Out of scope |
