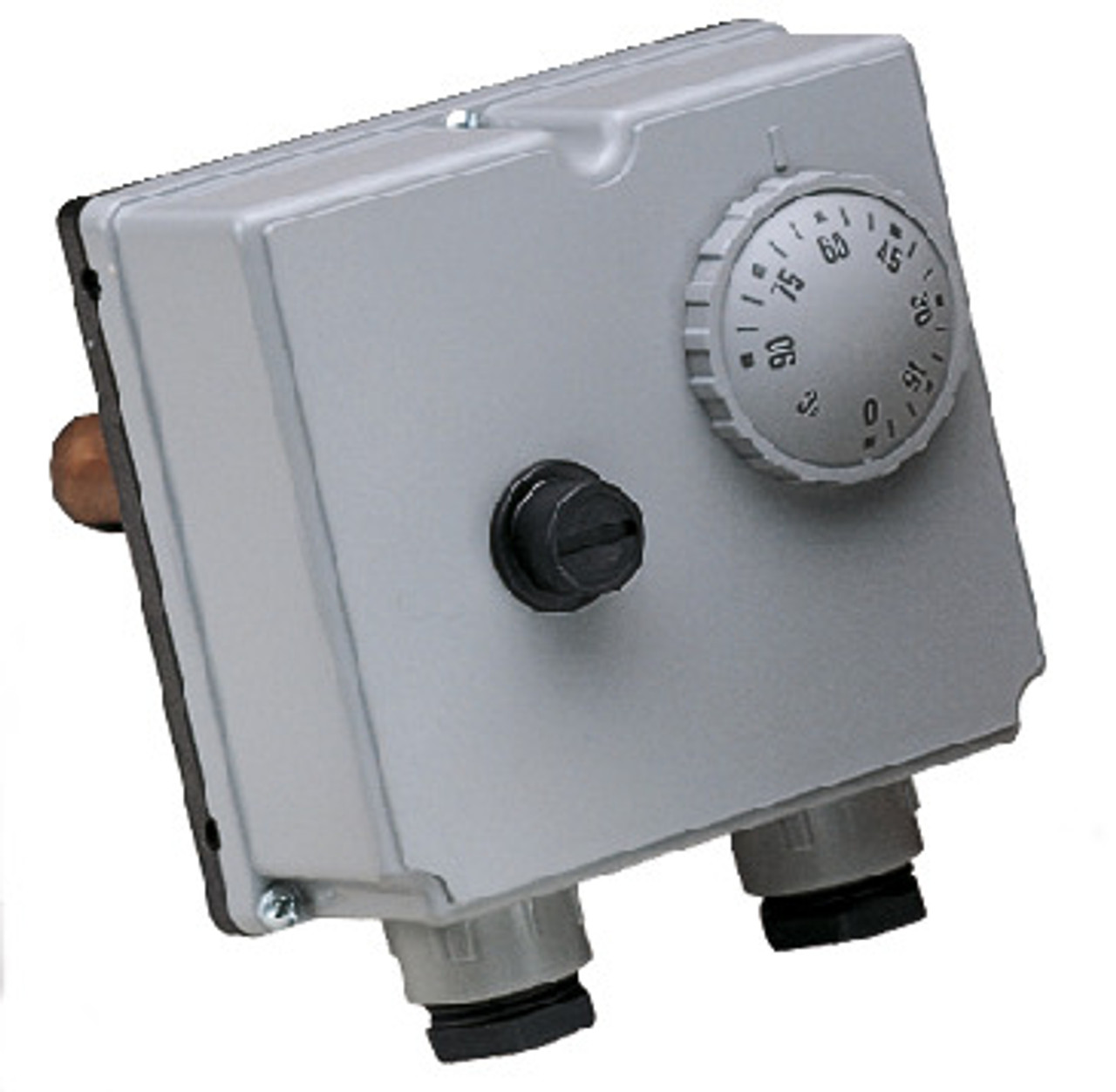

Danfoss 014U1937 Immersion Thermostats, ITD, Function: Dual control and limit thermostat, 0 °C - 90 °C, Factory Set Temp. Limit [°C]: 80

Danfoss

Danfoss 014U1937 Immersion Thermostats, ITD, Function: Dual control and limit thermostat, 0 °C - 90 °C, Factory Set Temp. Limit [°C]: 80

373.80€

Current Stock:

Quantity:

Dual control and limit function

Gross weight	0.43 Kilogram
Net weight	0.425 Kilogram

Volume	2.162 Liter
EAN	5013567403486

Ambient temperature [°C] [max]	80 °C
China RoHS compliance	Out of scope
Depth [mm]	57 mm
Description	Dual control and limit function
EEE category	5 small equipment (any external dimension 50 cm)
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Factory Set Temp. Limit [°C]	80 °C
Function	Dual control and limit thermostat
Height [mm]	110 mm
In scope of WEEE	Yes
Limit range [°C] [Max]	100 °C
Limit range [°C] [Min]	90 °C

Output relay rating inductive [A]	3 A
Output relay rating resistive [A]	10 A
Pocket length [mm]	100 mm
Product group	Immersion Thermostats
REACH Candidate List substances	No
Switch type - control	SPDT
Switch type - Limit	SPST
Switching differential	4 ± 1°C
Temperature Control range [°C] [Max]	90 °C
Temperature Control range [°C] [Min]	0 °C
Type	ITD
UK RoHS compliance	Yes
Width [mm]	100 mm
