Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF
| Gross weight |
0.115 Kilogram |
| Net weight |
0.089 Kilogram |
| Volume |
0.143 Liter |
| EAN |
5702428288866 |
| Gross weight |
0.115 Kilogram |
| Net weight |
0.089 Kilogram |
| Volume |
0.143 Liter |
| EAN |
5702428288866 |
| Body material |
Brass |
| China RoHS compliance |
Yes exceed limitations |
| Connection material |
Copper |
| Contain batteries |
No |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| Green: max moist con@25 °C |
R410A: 25 ppm |
| Green: max moist con@43 °C |
R410A: 60 ppm |
| Inlet connection type |
Solder, ODF |
| Inlet size [in] |
3/8 in |
| Max. Working Pressure [bar] |
46 bar |
| Max. Working Pressure [psig] |
667 psig |
| Moisture indicator |
H indicator |
| Outlet connection type |
Solder, ODF |
| Outlet size [in] |
3/8 in |
| Packing format |
Multi pack |
| Product accessories |
No |
| Product group |
Sight glasses |

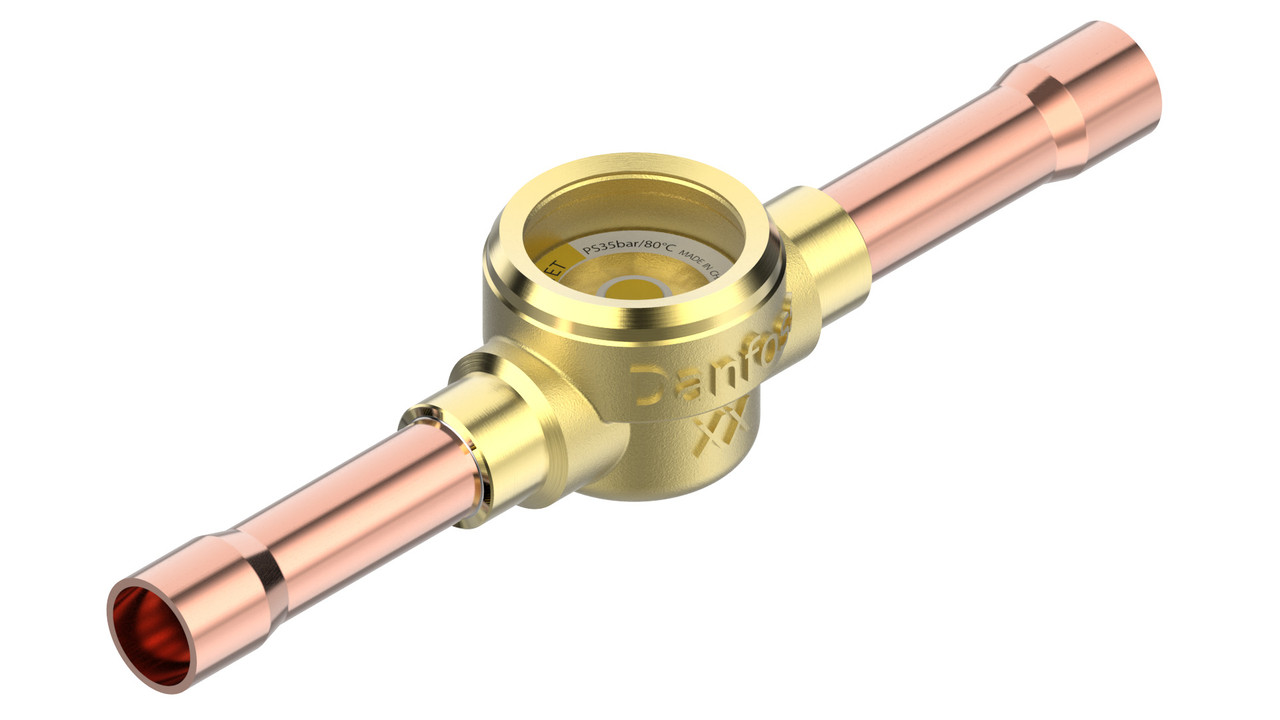

| Product Name Description |
Sight glass |
| Quantity per packing format |
25 pc |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants |
R410A |
| SCIP dossier no. |
323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| Serviceable |
No |
| Temperature range [°C] [max] |
80 °C |
| Temperature range [°C] [min] |
-50 °C |
| Temperature range [°F] [max] |
175 °F |
| Temperature range [°F] [min] |
-58 °F |
| Type |
SGH 10s |
| UK RoHS compliance |
Out of scope |
| Yellow: min moist con@25 °C |
R410A: 165 ppm |
| Yellow: min moist con@43 °C |
R410A: 500 ppm |
| Body material |
Brass |
| China RoHS compliance |
Yes exceed limitations |
| Connection material |
Copper |
| Contain batteries |
No |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| Green: max moist con@25 °C |
R410A: 25 ppm |
| Green: max moist con@43 °C |
R410A: 60 ppm |
| Inlet connection type |
Solder, ODF |
| Inlet size [in] |
3/8 in |
| Max. Working Pressure [bar] |
46 bar |
| Max. Working Pressure [psig] |
667 psig |
| Moisture indicator |
H indicator |
| Outlet connection type |
Solder, ODF |
| Outlet size [in] |
3/8 in |
| Packing format |
Multi pack |
| Product accessories |
No |
| Product group |
Sight glasses |
| Product Name Description |
Sight glass |
| Quantity per packing format |
25 pc |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants |
R410A |
| SCIP dossier no. |
323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| Serviceable |
No |
| Temperature range [°C] [max] |
80 °C |
| Temperature range [°C] [min] |
-50 °C |
| Temperature range [°F] [max] |
175 °F |
| Temperature range [°F] [min] |
-58 °F |
| Type |
SGH 10s |
| UK RoHS compliance |
Out of scope |
| Yellow: min moist con@25 °C |
R410A: 165 ppm |
| Yellow: min moist con@43 °C |
R410A: 500 ppm |
