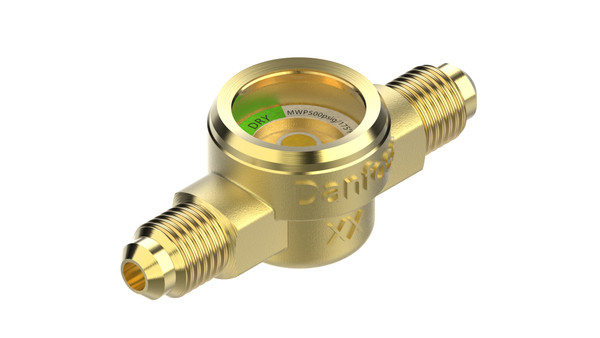

Inlet connection type: Flare, Inlet size [mm]: 6.00, Outlet connection type: Flare, Outlet size [mm]: 6.00
| Gross weight |
0.104 Kilogram |
| Net weight |
0.092 Kilogram |
| Volume |
0.138 Liter |
| EAN |
5702422024071 |
| Gross weight |
0.104 Kilogram |
| Net weight |
0.092 Kilogram |
| Volume |
0.138 Liter |
| EAN |
5702422024071 |
| Body material |
Brass |
| China RoHS compliance |
Yes exceed limitations |
| Connection material |
Brass |
| Contain batteries |
No |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| Green: max moist con@25 °C |
R22: 150 ppm |
| Green: max moist con@43 °C |
R22: 250 ppm |
| Inlet connection type |
Flare |
| Inlet Internal/External |
External |
| Inlet size [in] |
1/4 in |
| Inlet size [mm] |
6 mm |
| Max. Working Pressure [bar] |
35 bar |
| Max. Working Pressure [psig] |
500 psig |
| Moisture indicator |
I indicator |
| Outlet connection type |
Flare |
| Outlet Internal/External |
External |
| Outlet size [in] |
1/4 in |
| Outlet size [mm] |
6 mm |
| Packing format |
Multi pack |
| Product accessories |
Generic accessories |
| Product group |
Sight glasses |
| Product Name Description |
Sight glass |
| Quantity per packing format |
25 pc |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants |
R22 |
| SCIP dossier no. |
323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| Serviceable |
No |
| Temperature range [°C] [max] |
80 °C |
| Temperature range [°C] [min] |
-50 °C |
| Temperature range [°F] [max] |
175 °F |
| Temperature range [°F] [min] |
-58 °F |
| Type |
SGI 6 |
| UK RoHS compliance |
Out of scope |
| Yellow: min moist con@25 °C |
R22: 300 ppm |
| Yellow: min moist con@43 °C |
R22: 500 ppm |
| Body material |
Brass |
| China RoHS compliance |
Yes exceed limitations |
| Connection material |
Brass |
| Contain batteries |
No |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| Green: max moist con@25 °C |
R22: 150 ppm |
| Green: max moist con@43 °C |
R22: 250 ppm |
| Inlet connection type |
Flare |
| Inlet Internal/External |
External |
| Inlet size [in] |
1/4 in |
| Inlet size [mm] |
6 mm |
| Max. Working Pressure [bar] |
35 bar |
| Max. Working Pressure [psig] |
500 psig |
| Moisture indicator |
I indicator |
| Outlet connection type |
Flare |
| Outlet Internal/External |
External |
| Outlet size [in] |
1/4 in |
| Outlet size [mm] |
6 mm |
| Packing format |
Multi pack |
| Product accessories |
Generic accessories |
| Product group |
Sight glasses |
| Product Name Description |
Sight glass |
| Quantity per packing format |
25 pc |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants |
R22 |
| SCIP dossier no. |
323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| Serviceable |
No |
| Temperature range [°C] [max] |
80 °C |
| Temperature range [°C] [min] |
-50 °C |
| Temperature range [°F] [max] |
175 °F |
| Temperature range [°F] [min] |
-58 °F |
| Type |
SGI 6 |
| UK RoHS compliance |
Out of scope |
| Yellow: min moist con@25 °C |
R22: 300 ppm |
| Yellow: min moist con@43 °C |
R22: 500 ppm |
