Danfoss

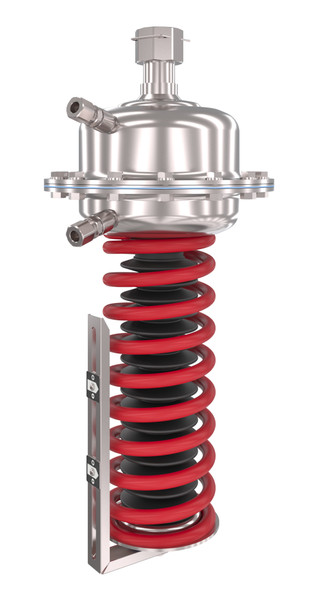

Danfoss 003G5606 AFP 2, PN 16, 1.00 bar - 3.00 bar, 80 cm²

2,876.90€

Current Stock:

Quantity:

Differential pressure actuator

Gross weight	9.6 Kilogram
Net weight	8.5 Kilogram

Volume	50.025 Liter
EAN	5710104096278

Actuator diaphragm material	EPDM (Rolling, fibre enforced)
Actuator size [cm²]	80 cm²
Body material	Steel, mat. No. 1.0345, zinc plated
China RoHS compliance	Out of scope
Contain batteries	No
Description	Differential pressure actuator
Diameter [mm] [Max]	125 mm
Diameter [mm] [Min]	65 mm
Differential pressure setting [bar] [Max]	3 bar
Differential pressure setting [bar] [Min]	1 bar
EU RoHS compliance	Out of scope
Flow control	No
Flow limitation	No
Function	Diff. press. controller
Media pH [Max]	10

Media pH [Min]	7
Media temperature [°C] [Max]	150 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Mounting version	Free
Operating pressure [bar] [Max]	16 bar
Permissible media	District heating/cooling circulation water
Pressure class	PN 16
Pressure controller	Differential pressure controller
Pressure nominal [bar]	16 bar
Product group	Actuators - Pressure Flow
Setting Type	Adjustable
Type	AFP 2
UK RoHS compliance	Out of scope

Actuator diaphragm material	EPDM (Rolling, fibre enforced)
Actuator size [cm²]	80 cm²
Body material	Steel, mat. No. 1.0345, zinc plated
China RoHS compliance	Out of scope
Contain batteries	No
Description	Differential pressure actuator
Diameter [mm] [Max]	125 mm
Diameter [mm] [Min]	65 mm
Differential pressure setting [bar] [Max]	3 bar
Differential pressure setting [bar] [Min]	1 bar
EU RoHS compliance	Out of scope
Flow control	No
Flow limitation	No
Function	Diff. press. controller
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	150 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Mounting version	Free
Operating pressure [bar] [Max]	16 bar
Permissible media	District heating/cooling circulation water
Pressure class	PN 16
Pressure controller	Differential pressure controller
Pressure nominal [bar]	16 bar
Product group	Actuators - Pressure Flow
Setting Type	Adjustable
Type	AFP 2
UK RoHS compliance	Out of scope
