Danfoss

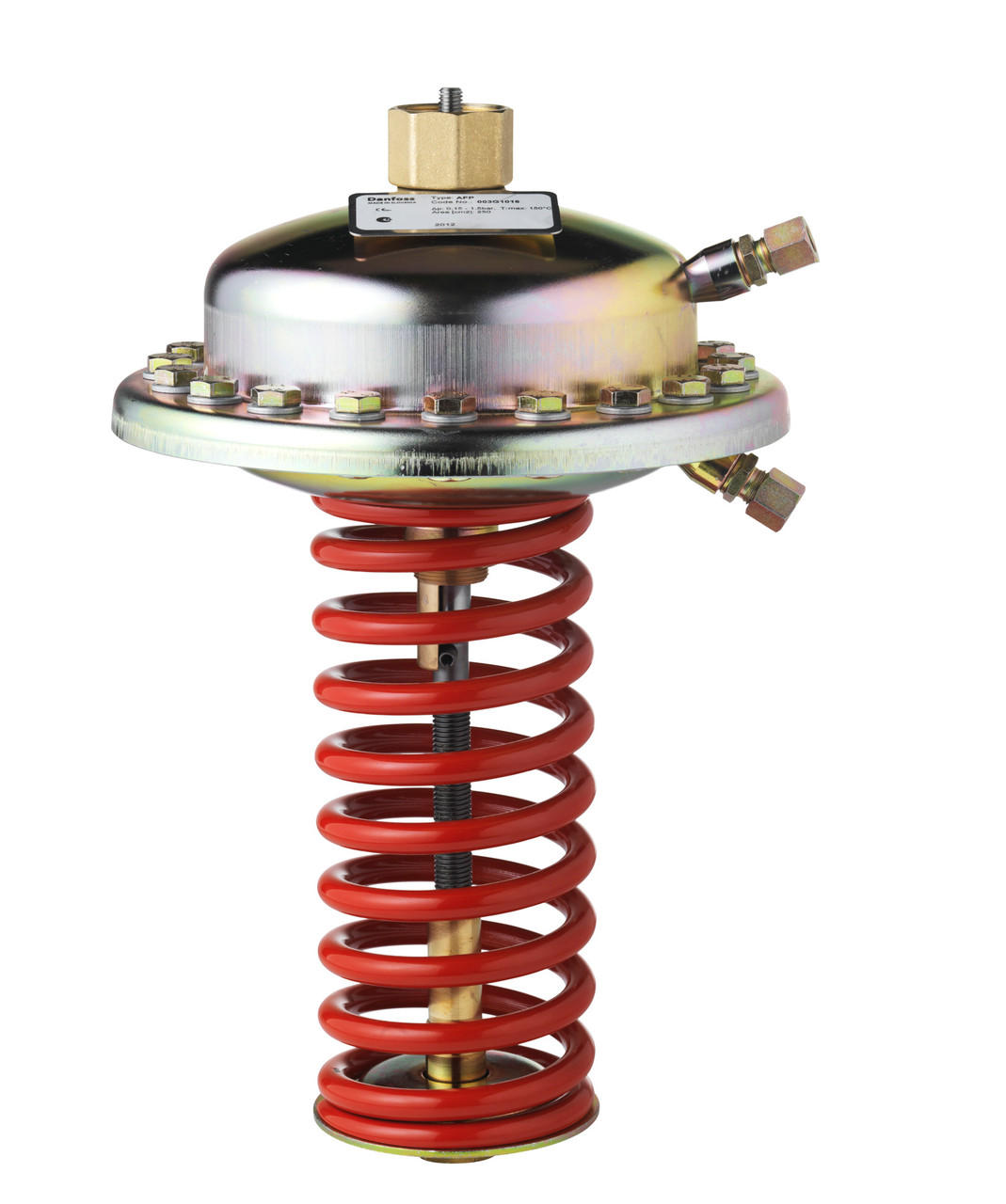

Danfoss 003G1015 AFP-9, PN 25, 1.00 bar - 6.00 bar, 80 cm², Red

2,876.90€

Current Stock:

Quantity:

AFP-9 PB25 1-6 80cm2 red

Gross weight	8.76 Kilogram
Net weight	8.079 Kilogram

Volume	26.645 Liter
EAN	5702421808283

Actuator size [cm²]	80 cm²
China RoHS compliance	Out of scope
Colour	Red
Contain batteries	No
Description	AFP-9 PB25 1-6 80cm2 red
Diameter [mm] [Max]	125 mm
Diameter [mm] [Min]	15 mm
Differential pressure setting [bar] [Max]	6 bar
Differential pressure setting [bar] [Min]	1 bar
EU RoHS compliance	Out of scope
Flow control	No
Flow limitation	No
Function	Diff. press. controller
Media pH [Max]	10
Media pH [Min]	7

Media temperature [°C] [Max]	150 °C
Mounting version	Free
Operating pressure [bar] [Max]	25 bar
Pressure class	PN 25
Pressure controller	Differential pressure controller
Pressure nominal [bar]	25 bar
Product group	Actuators - Pressure Flow
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	1fc27f33-7222-414d-8ff1-81abdd587564
SCIP dossier product name	AFP/A/B
Setting Type	Adjustable
Stroke [mm]	7 mm
Type	AFP-9
UK RoHS compliance	Out of scope
